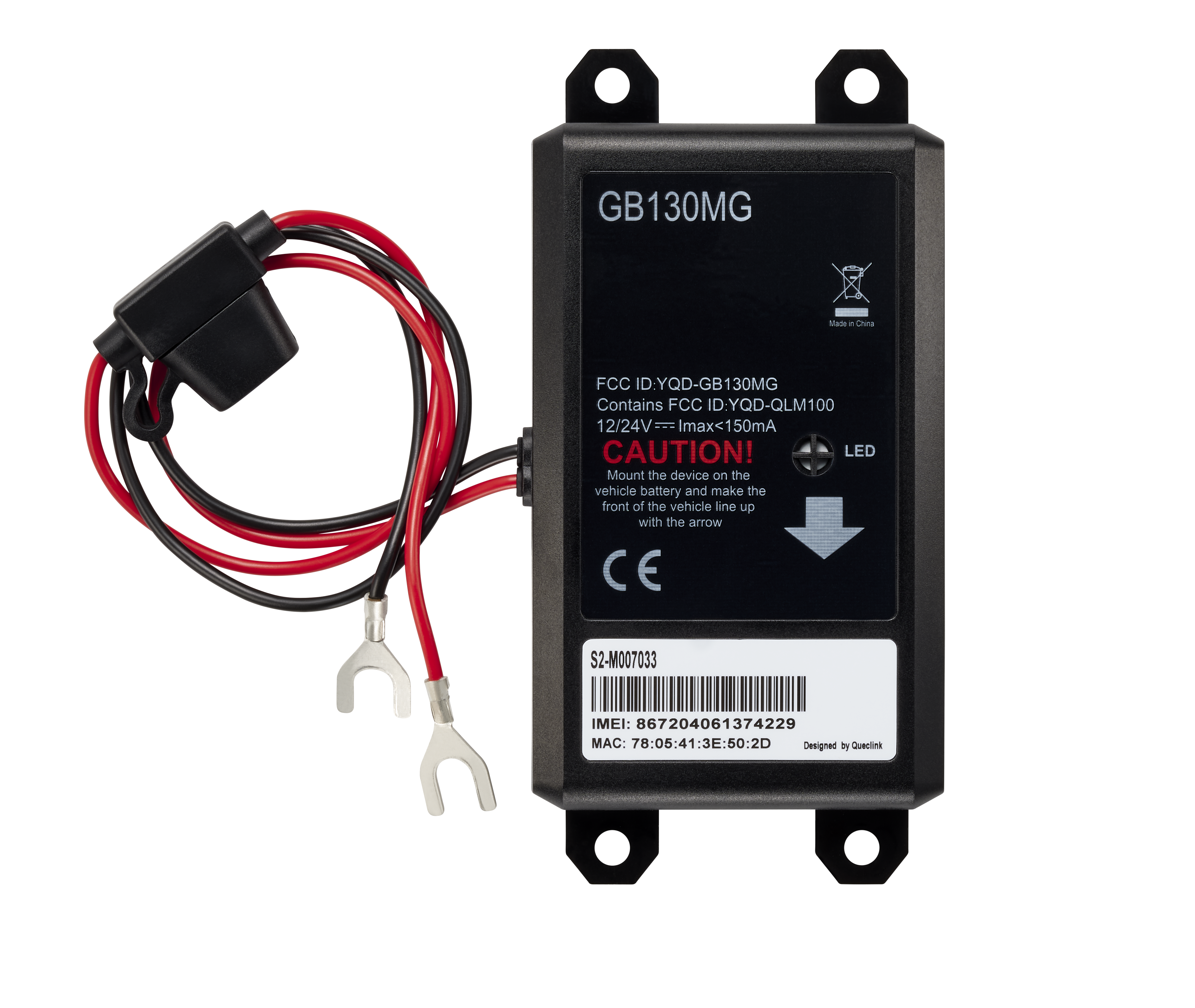

The Swift Wired Tracker is an easy to connect, weatherproof device. It can run connected directly to an asset or external power source, meaning no worries about battery charge come into play.

This manual will help you get started. Welcome to Hapn.

What's in the box

• Tracker with SIM card installed
• Adhesive pad

Note: User does not typically need to open the SIM compartment.

Step 1 - Installation

The  Y-clamps make installation as simple as possible: simply attach the red wire to the positive terminal on the vehicle battery for direct power, and connect the black wire to the negative terminal on the battery.

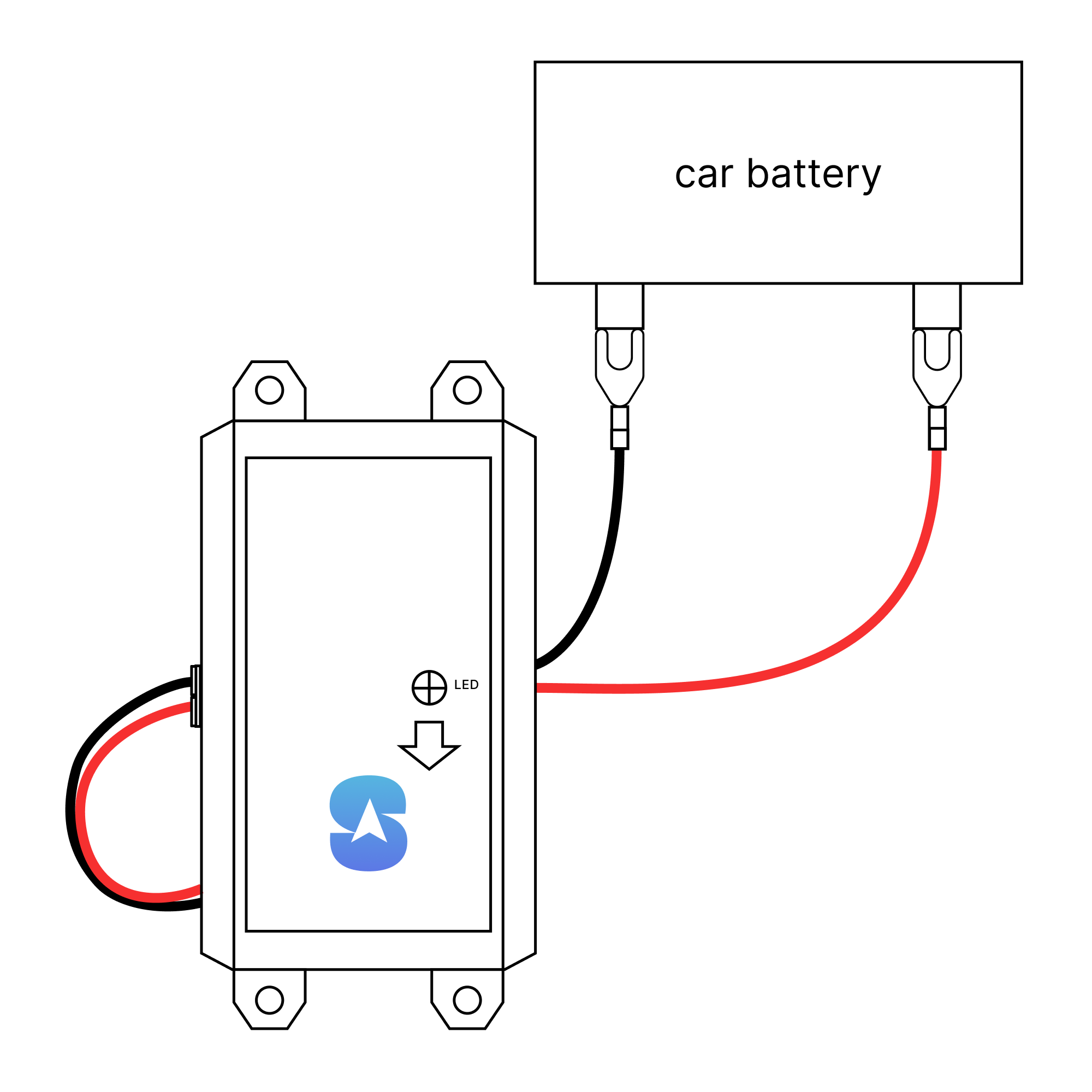

This diagram is the simplest way of illustrating how to wire the tracker. Connecting the Y-clips to the corresponding battery terminals.

Step 2 - Locate your IMEI

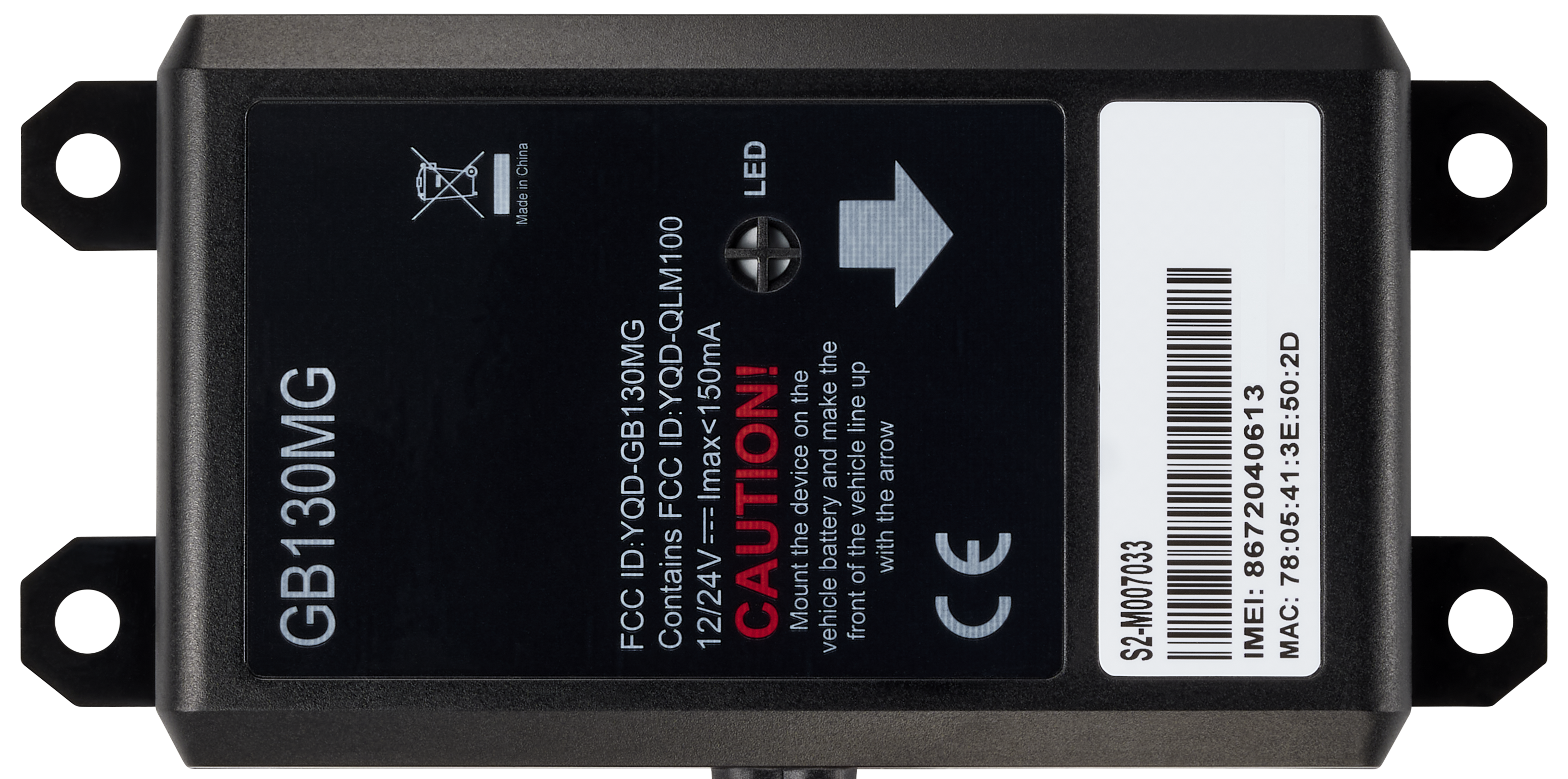

Locate the International Mobile Equipment Identity (IMEI) number on the bottom front of your tracker. The number is 15 characters long. You will need to enter it to set up your account.

Step 3 - Activate your tracker

1. From your computer or smartphone, go to: gethapn.com/activate.
2. Follow the activation steps. Tip: Keep your tracker IMEI handy.
3. Login to the tracking app by:
   1. Going to app.gethapn.com from your computer
   2. Going to our website, gethapn.com and clicking “Login”
   3. Downloading our mobile apps:
      1. Download Hapn for iOS
      2. Download Hapn for Android
4. Once you’re logged into your tracking applications, you’ll need to make sure your tracker is connected by following the steps below.

Important Facts

• The default reporting mode for the Swift Wired is Normal mode - 1 minute moving and 3 hours stopped. This can be adjusted via the tracker settings in the applications.
• The Swift Wired reporting mode is triggered by the tracked asset ignition being on or off. This differs from many other devices that are triggered by motion. The important thing to note is that an asset that is moving while the ignition is off, will not trigger faster update frequencies.
• The Swift Wired has one LED light on the face. The light indicates Cell and GPS connectivity. A solid light means the device is connected to both cellular and GPS service. A fast flash followed by a slow flash, indicates that the GPS is connected but cellular is not.
• The device has a small back-up battery to continue transmitting in the case of complete asset power loss.

Specifications

Help

Thank you for purchasing a Spytec GPS product. We appreciate your business and strive to make your experience the best possible. If you have any issues with your product, contact us at the following addresses:

Email tech support questions to: support@gethapn.com

Email billing questions to: support@gethapn.com

To download user manuals—including the one for the Hapn platform software that you’ll use to track your GPS device from a phone, tablet or computer, go to:

https://help.gethapn.com

Log into your tracker at: app.gethapn.com

To download the IOS app go to: store.apple.com/hapn

To download the Android app go to: store.google.com/hapn

Warranty

The Spytec GPS 6-month hardware warranty covers products purchased online or from an authorized retailer. Products under warranty qualify for an exchange with a valid receipt and an active subscription and is non-transferable. The warranty does NOT cover compatibility or functionality problems caused by the actions or technology of third parties. This warranty does NOT cover damages resulting from improper use of the device (including the use of incompatible accessories such as chargers, storage devices, etc.), unauthorized modifications to the device, negligence, any environmental or natural disasters, or loss or theft. This warranty does NOT cover water damage.

Devices that are covered will be repaired or replaced at the discretion of Spytec GPS. Devices

requiring replacement will be fulfilled with a new or refurbished unit, or a similar unit if the original unit

is no longer available.

To take advantage of our warranty, go to http://www.spytec.com/pages/returns and review our

Returns Policy. If your device meets the above guidelines as well as the guidelines on our website,

please click the button to proceed to the Return Authorization Form. In the event that our online

guidelines change, this warranty will supersede any newer changes. Once you have filled out the

Return Merchant Authorization Form, please wait for instructions.
