The 60 Day Extended Battery Case is a kit that combines a long-life, rechargeable lithium-ion battery with a tough case that adheres to a metallic surface of a vehicle, mobile equipment or other asset in transit using two heavy-duty magnets. The external battery can extend your tracker battery by up to two times, or an additional month, beyond the standard battery life of GL300 series trackers. The case houses the extended battery, connection cable, and your GPS tracker (not included).

This manual will help you get started. Welcome to Hapn.

What's in the box

• Battery Pack
• AC Adapter
• Connection Cable
• Watertight case with two magnets
• Two magnetic brackets with adhesive strips

Step 1 - Charging the Battery

1. Plug the adapter into a wall outlet or power strip. You will see the LED light on the charger head light Green.

2. Plug the round connector from the cable on the AC adapter into the larger round socket of the lithium-ion battery pack cable.  The LED on the charger head should turn red to indicate power is flowing through to the pack. Plan on keeping the charger plugged in for 8+ hours. The LED on the power adapter turns green when the battery is fully charged.

Step 2 - Connecting the GPS Tracker

• Connect the connection cable to the battery pack by plugging the 4-pin connector on the cable to the 4-pin plug on the battery pack. The plug will only fit one way. Once connected, plug the other end of the connection cable (mini-USB or USB type C) into the GL300. Once the tracker is powered on, it will draw power from the battery pack.
• Note: The external (extended battery) will NOT charge the tracker’s internal battery. For the longest-lasting power, you should fully charge the tracker’s internal battery separately before connecting the fully charged extended battery.

Step 3 - Attach the case to an asset

• With the battery, switch module, tracker, and all wires snugly packed inside with nothing protruding, shut the case and snap the two-tab latch into the slots. Two industrial-strength magnets are attached to brackets. Attach each bracket to the side hinges so that the magnet, when swung around, will adhere to the bottom of the case. Make sure to peel off the adhesive covers so that the magnets will stick to the case bottom.

• You would typically mount the case upside down against a flat metallic surface under a vehicle. If you’re attaching the case to a vehicle or another type of asset such as construction equipment or a safe, make sure you attach it to the outside of any metallic enclosure. The case should not be placed under a hood, in the trunk, or in a safe. The case is made of plastic, as metal will interfere with transmission signals.
• The magnets will keep the case securely in place. You’ll have to exert some force to pull the case off a surface if you want to move the case. The magnets won’t damage the mounting surface, and you won’t have to drill any holes.
  Note: Depending on placement, the case won’t necessarily have to be removed from its magnetic mount when you open the lid and temporarily remove components for recharging.

Important Facts

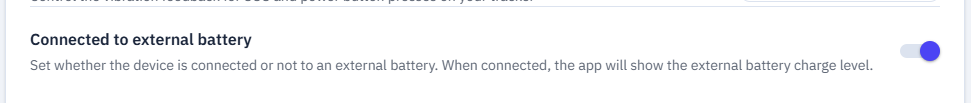

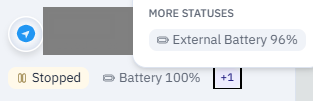

• When using the extended battery case, please go to the Tracker Settings page for the GL300 device and turn on the switch for "Connected to External Battery" switch, then the Tracker Info Card will show both the Tracker battery percent and the External Battery percent:



Specifications

Help

Thank you for purchasing a Spytec GPS product. We appreciate your business and strive to make your experience the best possible. If you have any issues with your product, contact us at the following addresses:

Email tech support questions to: support@gethapn.com You can also reach us any time via 24/7 live chat.

Email billing questions to: support@gethapn.com

To download user manuals—including the one for the Hapn platform software that you’ll use to track your GPS device from a phone, tablet or computer, go to:

https://help.gethapn.com

Log into your tracker at: app.gethapn.com

To download the IOS app go to: store.apple.com/hapn

To download the Android app go to: store.google.com/hapn

Warranty

The Spytec GPS 6-month hardware warranty covers products purchased online or from an authorized retailer. Products under warranty qualify for an exchange with a valid receipt and an active subscription and is non-transferable. The warranty does NOT cover compatibility or functionality problems caused by the actions or technology of third parties. This warranty does NOT cover damages resulting from improper use of the device (including the use of incompatible accessories such as chargers, storage devices, etc.), unauthorized modifications to the device, negligence, any environmental or natural disasters, or loss or theft. This warranty does NOT cover water damage.

Devices that are covered will be repaired or replaced at the discretion of Spytec GPS. Devices

requiring replacement will be fulfilled with a new or refurbished unit, or a similar unit if the original unit

is no longer available.

To take advantage of our warranty, go to gethapn.com/returns and review our

Returns Policy. If your device meets the above guidelines as well as the guidelines on our website,

please click the button to proceed to the Return Authorization Form. In the event that our online

guidelines change, this warranty will supersede any newer changes. Once you have filled out the

Return Merchant Authorization Form, please wait for instructions.
