How to Install Your Swift Wired Tracker

Kayla H.
  • Updated

Contents

Overview

The Swift Wired Tracker is a weatherproof GPS tracking device designed for direct connection to your vehicle's battery. This hardwired installation provides continuous power without the need for battery charging or maintenance.

Key Features:

  • Weatherproof design for outdoor installation
  • Direct battery connection for reliable power
  • Ignition-based reporting (updates based on ignition status, not motion)
  • Built-in backup battery for power interruptions

What's Included

Your Swift Wired Tracker package contains:

  • Swift Wired Tracker with pre-installed SIM card
  • Y-clamp wiring harness (red and black wires with battery clamps)
  • Adhesive mounting pad

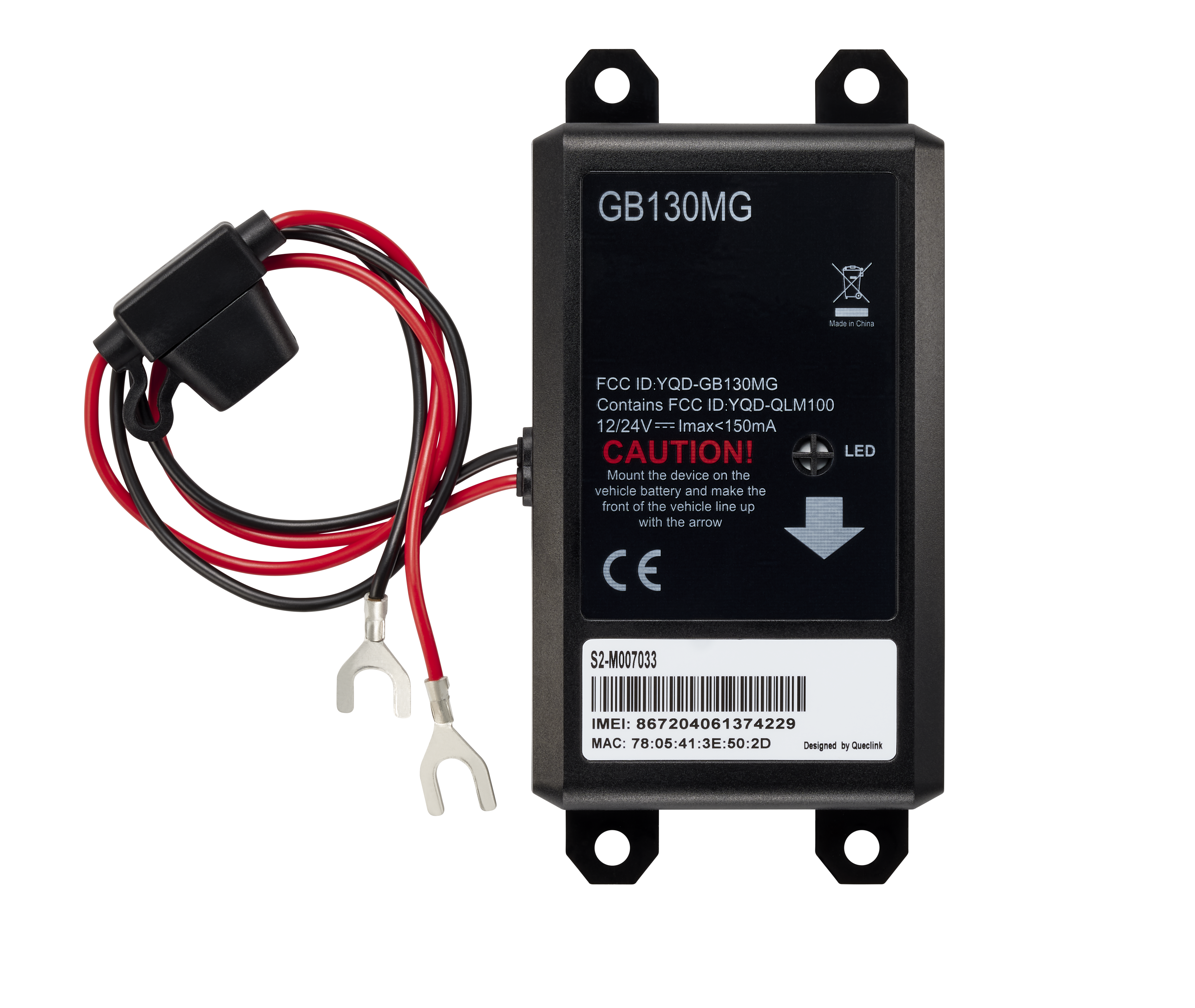

24-1749_GB130_Front_89894 (1) copy.png

Note: The SIM card is pre-installed and typically doesn't need to be accessed.

Before You Begin

Vehicle Compatibility

  • Compatible with 12V and 24V vehicle electrical systems
  • Suitable for cars, trucks, motorcycles, boats, and heavy equipment
  • Works with both positive and negative ground systems

Planning the Installation

  1. Locate the battery: Identify your vehicle's battery location
  2. Identify the battery mounting surface: Find a clean, flat area on top of the battery for tracker placement
  3. Locate the front of the vehicle: Note which direction is "forward" to properly orient the tracker arrow
  4. Check wire routing: The Y-clamp wires should easily reach both battery terminals from the mounting position

Step-by-Step Installation

Step 1: Prepare the Vehicle

  1. Turn off the vehicle and remove the keys
  2. Engage the parking brake
  3. Open the hood and locate the battery
  4. Disconnect the negative (-) battery terminal for safety
  5. Clean the battery terminals if they show corrosion

Step 2: Prepare for Mounting

  1. Examine the battery: Locate a clean, flat surface on top of the battery for mounting
  2. Identify vehicle orientation: Determine which direction is the front of the vehicle
  3. Locate the arrow on the tracker: Find the directional arrow marked on the device
  4. Check wire reach: Verify the Y-clamp wires can reach both battery terminals from the mounting position

Step 3: Mount the Tracker

  1. Mount directly on the battery: The Swift Wired Tracker is designed to be mounted directly on the vehicle's battery
  2. Clean the battery surface thoroughly where you'll mount the tracker
  3. Orient the tracker correctly: Position the tracker so the arrow on the device points toward the front of the vehicle
  4. Remove adhesive backing from the mounting pad
  5. Press firmly to attach the tracker to the battery surface
  6. Verify orientation: Double-check that the arrow faces the front of the vehicle
  7. Allow adhesive to set for a few minutes before proceeding

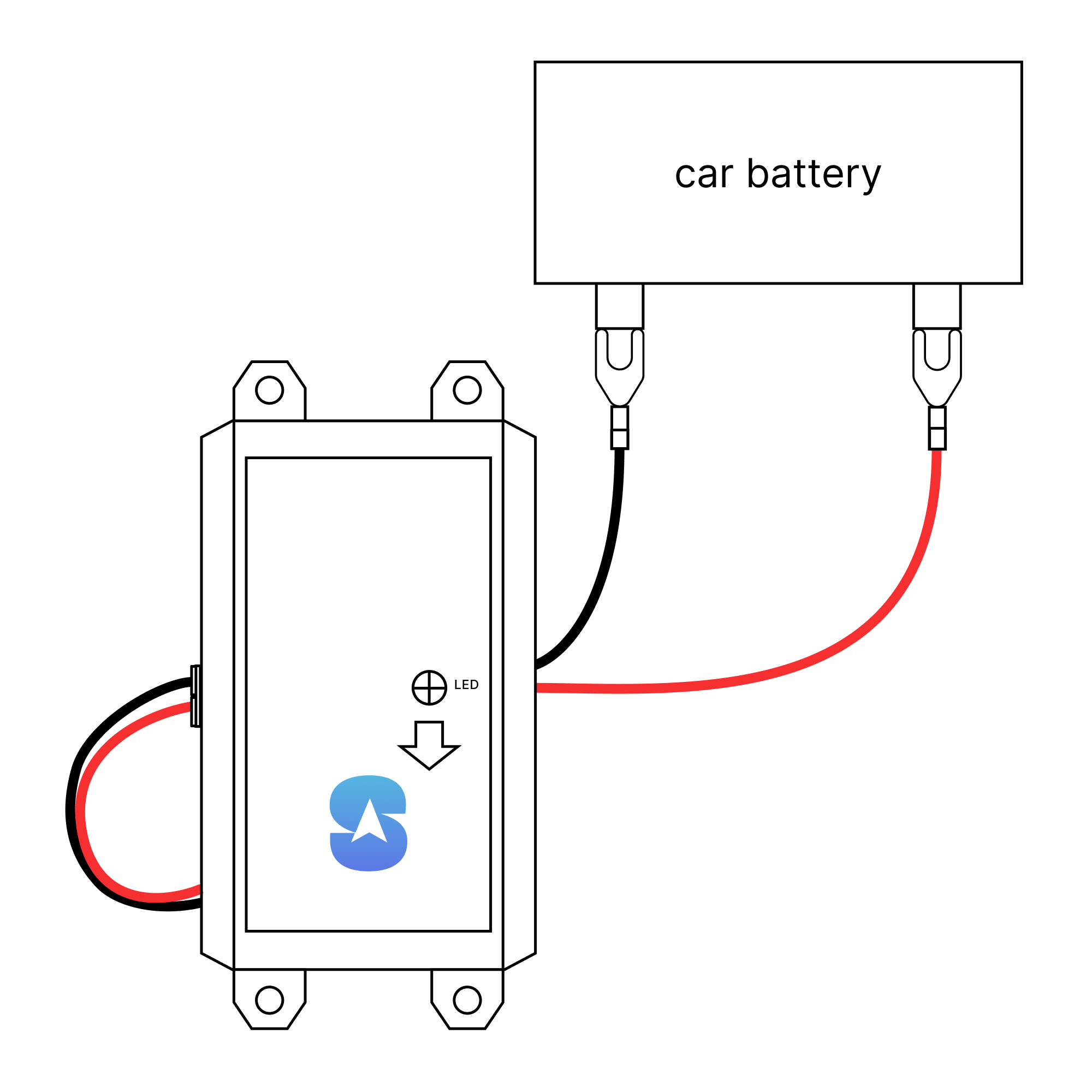

Step 4: Connect to Battery

  1. Verify tracker orientation: Ensure the arrow on the tracker points toward the front of the vehicle
  2. Connect the red wire (+):
    • Attach the red Y-clamp to the positive (+) battery terminal
    • Ensure the clamp is tight and secure
    • The connection should be metal-to-metal with no corrosion
  3. Connect the black wire (-):
    • Attach the black Y-clamp to the negative (-) battery terminal
    • Ensure the clamp is tight and secure
    • This completes the power circuit


Step 5: Secure the Installation

  1. Check tracker mounting: Ensure the tracker is firmly attached to the battery with the arrow pointing toward the front of the vehicle
  2. Organize the wires: Route the Y-clamp wires neatly to avoid interference with engine components
  3. Secure connections: Verify both Y-clamps are tight on their respective battery terminals
  4. Check for clearance: Ensure the tracker and wires don't interfere with the hood closing

Step 6: Restore Vehicle Power

  1. Double-check all connections are secure
  2. Reconnect the negative (-) battery terminal
  3. Ensure battery terminals are tight

Verifying Installation

Check LED Indicator

The Swift Wired has one LED light on the face of the device:

LED Status Meanings:

  • Solid light: Connected to both cellular and GPS service (normal operation)
  • Fast flash followed by slow flash: GPS connected, cellular connecting
  • No light: Power issue or device not receiving power

Initial Power-Up Test

  1. Turn on the vehicle ignition (engine doesn't need to start)
  2. Wait 2-3 minutes for the tracker to boot up
  3. Check the LED indicator:
    • Should show activity within 1-2 minutes
    • May take 5-10 minutes to show solid light (full connection)

Connection Test

  1. Take the vehicle outside to an open area with good cellular coverage
  2. Wait 5-10 minutes for GPS and cellular connections to establish
  3. Check your Hapn account to see if the tracker appears online
  4. Verify location updates are being received

Troubleshooting

No LED Activity

Possible causes:

  • Loose or disconnected battery connections
  • Blown fuse in the vehicle's electrical system
  • Faulty Y-clamps or wiring

Solutions:

  1. Check battery connections: Ensure both clamps are tight and making good contact
  2. Verify battery voltage: Test with multimeter (should be 12V+ for car, 24V+ for truck)
  3. Inspect wiring: Look for damage, cuts, or loose connections
  4. Test clamps: Ensure clamps are properly attached to terminals

LED Shows Connection Issues

If GPS connected but cellular not (fast flash, slow flash pattern):

  1. Move to better cellular coverage area
  2. Wait up to 15 minutes for cellular connection
  3. Check for local cellular outages

If no GPS connection:

  1. Move vehicle to open outdoor area
  2. Check tracker placement - ensure clear view of sky
  3. Wait 10+ minutes for GPS satellite acquisition

Tracker Not Appearing in Account

  1. Verify the tracker is activated in your Hapn account
  2. Check LED shows solid light (full connection)
  3. Wait 15-30 minutes for initial check-in
  4. Contact support if issues persist

Next Steps

After successful installation:

1. Complete Account Setup

  • Log into your Hapn account at app.gethapn.com
  • Verify the tracker appears in your device list
  • Customize the tracker name for easy identification

2. Configure Settings

  • Adjust reporting modes if needed (default is Normal mode)
  • Set up alerts for important events
  • Create boundaries around important locations

3. Test Functionality

  • Take a test drive to verify location updates
  • Monitor ignition-based reporting:
    • Updates every 1 minute when ignition is ON
    • Updates every 3 hours when ignition is OFF
  • Verify the tracker shows movement in your account

Important Operating Notes

  • Ignition-based reporting: Unlike motion-based trackers, the Swift Wired updates based on ignition status
  • Backup battery: Device has a small backup battery for brief power interruptions
  • Weatherproof design: Suitable for outdoor installation in various weather conditions

Need help? Contact our support team at support@gethapn.com or submit a ticket.
